Custom Kraft Sleeve and Tray Boxes use two coordinated components: an inner tray that holds the product and an outer sleeve that slides over the tray.

The design creates a controlled reveal while providing separate surfaces for branding, product information and interior presentation. It can be used for retail products, gift sets, promotional collections and ecommerce presentation packaging.

Unlike heavy rigid drawer boxes, Kraft sleeve-and-tray boxes normally use folding paperboard or lightweight corrugated Kraft. This can reduce packed weight and provide more efficient storage before assembly.

How the Sleeve and Tray Structure Works

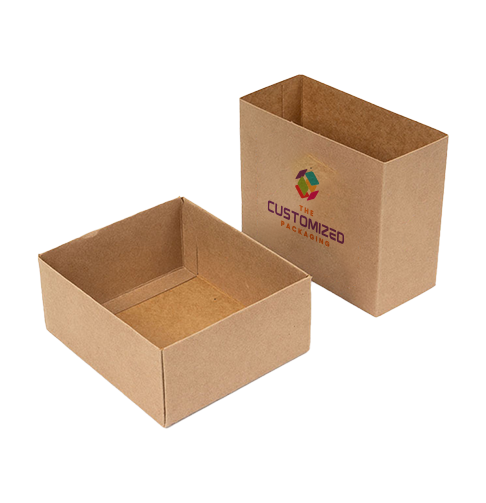

The tray carries the product while the sleeve surrounds the outside of the tray.

The sleeve may be open at both ends, allowing the tray to slide in either direction. It can also include a closed or stopped end to control the opening direction.

A thumb notch, semicircular cutout, paper pull or ribbon pull can help customers remove the tray. The selected opening feature should match the product weight and tray resistance.

The fit should be secure enough to prevent the tray from sliding out unintentionally but loose enough to open without damaging the sleeve.

Measuring the Product and Tray

Measure the final product at its widest, longest and highest points. Include any primary container, label, cap, accessory, leaflet or protective wrap.

The internal tray dimensions should allow enough clearance for insertion and removal without leaving unnecessary empty space.

When an insert is required, measure the product and insert together. A paperboard platform, divider or collar changes the total interior space required.

The outer sleeve is then developed around the finished outside dimensions of the tray. Accurate tolerances are important because a sleeve that is too tight can scrape or crush the tray, while a loose sleeve may slide off during handling.

Natural Kraft and White Kraft Options

Natural Kraft paperboard has a brown surface and visible fiber appearance. It can support minimal, artisan, handmade and nature-inspired branding.

Dark inks, line artwork and limited-color graphics usually produce stronger contrast on natural Kraft. White ink may be printed beneath selected colors when brighter artwork is required.

White Kraft provides a lighter printing surface for detailed illustrations, photography and wider color ranges. It can retain the structural qualities of Kraft while supporting a cleaner retail appearance.

The final printed color should be reviewed through a physical sample because ink appearance can vary according to the board surface and printing method.

Tray Construction Options

A simple folded tray works well for lightweight products and short production runs. Reinforced side walls can provide greater structure for deeper trays or heavier items.

A double-wall tray can create cleaner interior edges and additional strength. Locking tabs or glued corners may be used depending on the required appearance and assembly process.

Corrugated Kraft trays can provide more support for heavier products, multi-item gift sets and ecommerce presentation packaging.

The tray should be tested with the final product weight to confirm that the base remains level and the side walls retain their shape.

Sleeve Design Options

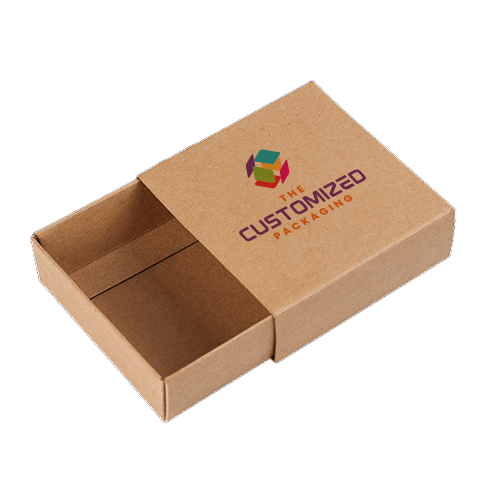

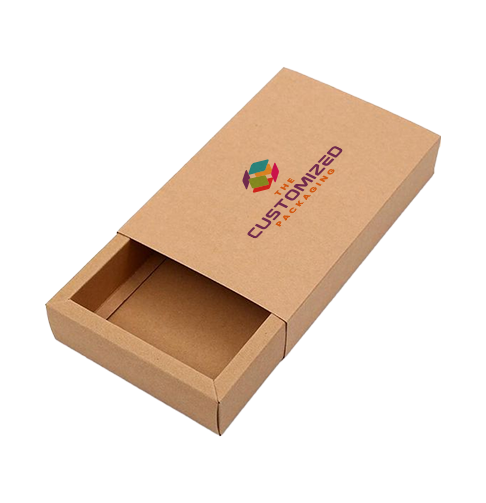

An open-ended sleeve provides the classic matchbox-style sliding experience. A closed-end sleeve helps stop the tray at one side and controls the direction of removal.

The sleeve can cover the entire tray or leave a selected section visible. Partial sleeves may reduce material use and allow more of the tray color to appear.

Die-cut thumb notches can improve access. Windows may be added to reveal the product or interior tray, provided enough board remains around the opening to maintain structural strength.

Interior sleeve printing can add instructions, brand stories, promotional messages or decorative artwork that appears as the tray opens.

Custom Inserts and Product Organization

Paperboard inserts can center products, separate components and improve presentation.

Available options include folded platforms, product collars, divider grids, channels, document pockets and removable trays. Molded-pulp and corrugated inserts may also be considered for selected products.

Cosmetic packaging may use separate spaces for jars, tubes and applicators. Jewelry packaging can include cards, slots or wrapped platforms. Electronics packaging may require compartments for the main device, cable and instructions.

The insert should hold the product without pressing against fragile surfaces, closures, labels or controls.

Kraft Sleeve Boxes for Cosmetics

Kraft sleeve-and-tray boxes can present skincare jars, soap bars, makeup products, perfume accessories and wellness sets.

Custom inserts can separate the primary product from applicators, cards or additional components. Interior printing may include usage guidance, ingredients supplied by the customer or QR-linked information.

The paperboard box normally functions as secondary packaging. Any product-contact, moisture or barrier requirements should be handled by a suitable primary container.

Gift and Promotional Packaging

Sliding Kraft boxes can be used for corporate gifts, product-launch kits, membership packages, event promotions and seasonal collections.

The tray can hold several components in a planned arrangement. A document pocket may contain a greeting card, promotional message, certificate or instruction leaflet.

Separate artwork versions can be printed for different campaigns, recipients, events or product collections while retaining the same box dimensions.

Food and Confectionery Applications

Kraft sleeve-and-tray packaging may be developed around wrapped confectionery, sealed food containers or products held inside suitable primary packaging.

Standard printed Kraft paperboard should not automatically be treated as suitable for direct food contact. Material requirements depend on the food, primary package, coatings, inks, adhesives and intended market.

Grease, moisture and aroma protection should be provided by a suitable liner, wrapper, tray or other primary package where required.

Printing and Logo Options

Digital printing can support selected shorter runs and several artwork variations. Offset printing can produce detailed color reproduction for larger quantities. Flexographic printing may be considered for corrugated Kraft structures and simpler graphics.

Branding can appear on the outer sleeve, tray front, tray interior, insert and underside panels.

Pantone colors, CMYK printing, white ink, one-color designs and interior printing may be available depending on the selected Kraft stock.

Foil stamping, embossing, debossing and spot UV can highlight selected artwork. Decorative finishes should not reduce the readability of barcodes, product information or instructions.

Windows and Product Visibility

A die-cut window can reveal the product, inner tray or printed insert before the box is fully opened.

Window shapes may include rectangular, circular, oval, arch, logo or custom designs. Large openings require sufficient surrounding board to prevent distortion.

A transparent film may be added where appropriate, but it changes the material composition of the finished package. An open cutout avoids window film but provides less protection from dust and handling.

Ecommerce and Shipping Protection

Kraft sleeve-and-tray boxes can provide branded presentation inside an ecommerce shipping system.

Lightweight folding structures may require a corrugated outer mailer, protective sleeve, paper cushioning or another appropriate shipping package.

The complete packaging system should be tested with the finished product, insert and outer shipping carton. The test should consider product movement, tray opening, sleeve abrasion and corner damage.

Paper-Based and Reduced-Plastic Options

Natural and white Kraft paperboard, paper inserts, molded-pulp components and right-sized structures may be available for projects seeking a simpler material mix.

The recyclability of the finished box depends on its board, coatings, adhesives, windows, foil, inserts, labels and local recycling facilities.

The complete package should be reviewed before making claims such as recyclable, biodegradable, compostable or sustainable.

MOQ, Quantities and Pricing

Low-minimum options may be available for selected digitally printed sleeves and straightforward folding trays.

Complex inserts, specialty papers, windows, foil, multiple artwork versions and manual assembly may require different production quantities.

Pricing depends on the closed dimensions, tray depth, Kraft grade, board thickness, insert, printing coverage, finishes, assembly requirements, quantity and delivery destination.

Using one box size for several products may improve production efficiency when suitable interchangeable inserts are used.

Estimate Your Packaging Budget

Use the Custom Box Packaging Cost Calculator to prepare a preliminary estimate for your Kraft sleeve-and-tray packaging.

Enter the outer dimensions, quantity, material, printing coverage and finishing requirements. Include the insert, tray depth, window and interior printing when requesting final pricing.

Final pricing is confirmed after reviewing the product dimensions, finished weight, sliding tolerance, artwork, insert layout and delivery requirements.
