| Specification | Available Options |
|---|---|
| Product Name | Custom Snap Lock Bottom Boxes |
| Alternative Names | 1-2-3 bottom boxes, snap bottom boxes and interlock bottom cartons |
| Applications | Bottles, jars, candles, cosmetics, supplements, electronics and retail products |
| Materials | SBS, folding board, white kraft, natural kraft and micro-flute |
| Top Closures | Straight tuck, reverse tuck, hang tab and custom closure |
| Bottom Closure | Manually assembled interlocking snap-lock panels |
| Dimensions | Custom length, width and height |
| Inserts | Paperboard, corrugated, molded pulp and selected foam |
| Printing | CMYK, Pantone, digital, offset, flexographic and one-color |
| Features | Windows, hang tabs, security seals, QR codes and custom inserts |
| Finishes | Matte, gloss, foil, embossing, debossing and spot UV |
| Supply Format | Flat-packed, pre-glued side seam or partially assembled |
| Quantity | Project-based minimums and wholesale production |
| Delivery | Available throughout the USA |

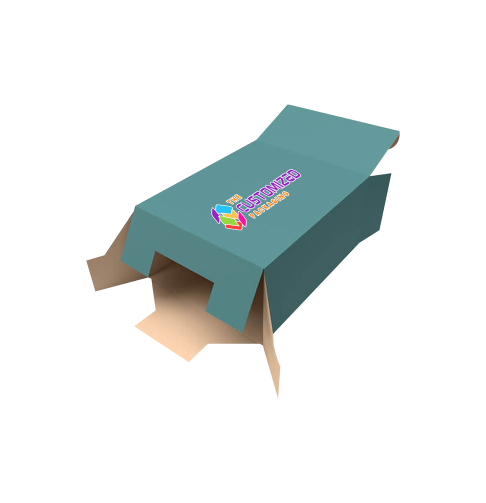

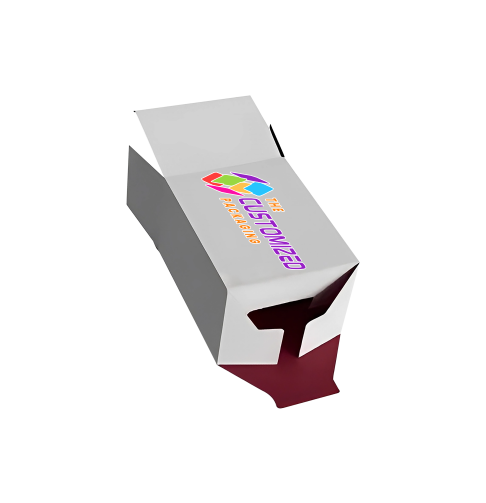

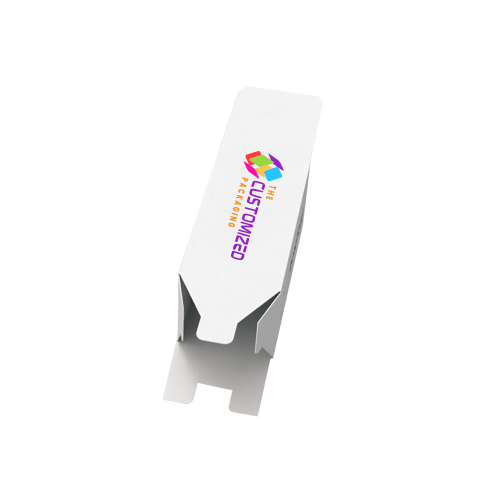

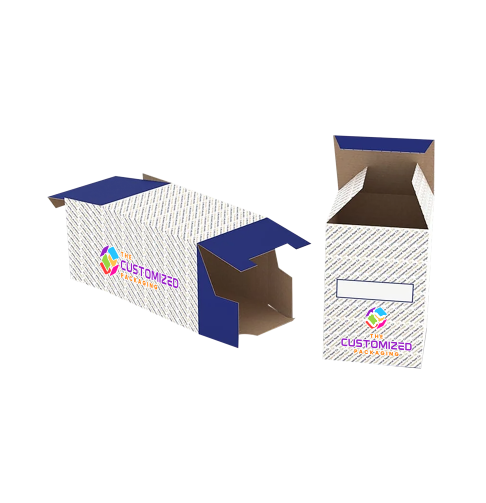

A snap-lock bottom box is a folding carton with several bottom panels that interlock manually to form a stable base. It is commonly called a 1-2-3 bottom box because the panels are folded and locked in a short sequence during assembly.
The top normally uses a straight-tuck or reverse-tuck closure, although windows, hang tabs, security seals and other features can be incorporated.
Snap-lock cartons are generally supplied flat, helping reduce storage space before packing. They are different from auto-lock cartons, whose pre-glued bottoms form automatically when the box is opened.
Snap Lock vs. Auto-Lock Bottom Boxes
| Feature | Snap-Lock Bottom | Auto-Lock Bottom |
|---|---|---|
| Alternative name | 1-2-3 bottom or interlock bottom | Crash-lock or automatic bottom |
| Base construction | Interlocking bottom flaps | Pre-glued folding panels |
| Assembly | Bottom is folded manually | Base forms when carton opens |
| Tape normally required | No | No |
| Packing speed | Moderate | Faster for repeated packing |
| Typical use | Medium-weight retail products | Higher-volume packing operations |
| Supply format | Flat-packed | Flat-packed with pre-glued base |
The correct choice depends on the product weight, order quantity, packing speed and available labor—not only the visual appearance.
Popular Snap Lock Box Styles
| Box Style | Recommended Application |
|---|---|
| Straight tuck snap-lock box | Bottles, jars, candles and general retail products |
| Reverse tuck snap-lock box | Cosmetics, personal care and compact merchandise |
| Window snap-lock box | Products requiring partial visibility |
| Hang-tab snap-lock box | Accessories, electronics and retail hook displays |
| Snap-lock box with insert | Bottles, jars, candles and fragile product sets |
| Corrugated snap-lock box | Larger cartons requiring additional rigidity |
| Gable snap-lock box | Gifts, bakery products and carry-ready packaging |
| Dispenser snap-lock box | Sachets, packets and small retail products |
Detailed gable and hang-tab structures should remain on their dedicated product pages to prevent keyword duplication.
Materials for Snap Lock Packaging
| Material | Recommended Use |
|---|---|
| SBS paperboard | Detailed artwork and premium retail presentation |
| Folding boxboard | Lightweight cartons and larger production runs |
| White kraft board | Bright graphics and full-color printing |
| Natural kraft board | Minimal, handmade and natural-looking brands |
| Recycled paperboard | Selected secondary-packaging applications |
| Micro-flute cardboard | Larger products requiring additional rigidity |
| E-flute corrugated | Heavier product sets and reinforced packaging |
The material and thickness should be selected according to the carton dimensions, packed weight, insert design, window size and distribution method.
Snap-lock construction is primarily intended for folding paperboard and selected corrugated structures. It should not be described as rigid setup-box construction.
Boxes for Bottles, Jars and Candles
Cardboard snap lock boxes provide more bottom support than many basic tuck-bottom cartons, making them suitable for appropriately weighted bottles, jars, candles and personal-care products.
The carton should be manufactured around the complete container, including the cap, pump, dropper, label and filled weight. Additional clearance may be needed around projecting closures.
Glass containers may require paperboard collars, corrugated dividers, molded-pulp supports or another fitted insert.
Cosmetics, Supplements and Retail Products
Custom printed snap lock boxes can package skincare bottles, cosmetics, supplements, small electronics, toys, hardware, stationery and household products.
Their upright panels provide space for logos, instructions, ingredients, warnings, barcodes, QR codes and product information.
The responsible product company should supply and approve all regulatory, technical or safety wording before printing.
Custom Sizes and Structural Dielines
Custom snap lock bottom boxes can be manufactured according to the exact product length, width, height and packed weight.
Measurements should include wrappers, labels, accessories, insert components and closure projections. The dieline must also account for the interlocking bottom panels, glue seam, tuck flap and required opening clearance.
The finished box should be tested with the actual product rather than judged using the empty carton alone.
Inserts and Internal Supports
Snap lock boxes with inserts can include paperboard platforms, bottle collars, corrugated dividers, molded-pulp components and selected foam supports.
An insert may help center the product, reduce movement or separate several items. Finger notches and ribbon lifts can make fitted products easier to remove.
The insert should not press against bottle pumps, droppers, lids or fragile components.
Windows and Hang Tabs
Die-cut windows can reveal the product, container label or selected design details. Available shapes may include rectangular, circular, curved and custom openings.
Enough board should remain around the window and corners to maintain carton strength.
Hang tabs can include Euro slots, round holes or other retail openings. The tab position and reinforcement should be determined using the complete packed weight.
Logo Printing and Branding
Snap lock boxes with logo printing help businesses maintain consistent presentation across retail shelves and product collections.
Artwork may appear on the front, back, sides, tuck flap, interior panels and selected inserts. Available methods may include CMYK, Pantone, digital, offset and flexographic printing according to the material and quantity.
Different flavors, scents or product variations may share one structural dieline when their dimensions and packed weights remain the same.
Premium Finishes
Available options include matte or gloss lamination, aqueous coating, foil stamping, embossing, debossing and spot UV.
Foil and embossing can highlight logos or product names, while spot UV can emphasize selected patterns. Decorative treatments should remain clear of locking panels, folds, glue seams, barcodes and small regulatory text.
Retail and Ecommerce Use
Snap-lock cartons are primarily folding retail packages. They may be used for local delivery or placed inside an ecommerce shipment when the material and structure suit the application.
A paperboard retail carton should not automatically be described as parcel-ready. Products shipped through carrier networks may require a corrugated mailer, cushioning and internal movement control.
Shipping suitability depends on the packed weight, board grade, insert, closure and expected distribution conditions.
Wholesale Snap Lock Box Pricing
Ordering wholesale snap lock boxes can reduce the average unit price because dieline preparation, tooling and printing setup are distributed across more units.
Pricing depends on the dimensions, paperboard grade, bottom construction, window, insert, print coverage, finishes, artwork versions, quantity and delivery destination.
Why Choose The Customized Packaging?
The Customized Packaging develops snap-lock cartons around your product dimensions, packed weight, packing process and brand presentation.
Our team can assist with material selection, 1-2-3 bottom construction, windows, inserts, dielines, artwork placement and finishing options.
Share your product dimensions, weight, preferred structure, artwork, quantity and delivery address for project-specific pricing.
No. Snap-lock bottoms use flaps that are folded and interlocked manually. Auto-lock bottoms have a pre-glued base that forms automatically when the carton opens.
The name refers to the short sequence used to fold and interlock the bottom panels.
The interlocking bottom normally closes without tape. Additional sealing may still be required depending on the product and distribution process.
They can be developed for appropriately weighted containers, but the board grade, insert and complete packed weight must be evaluated.
Paperboard versions normally require protective outer shipping packaging. Selected corrugated versions may be developed for delivery after reviewing the complete packed product.
