Greyboard and Paper Wrap for Magnetic Rigid Boxes: How Thickness, Surface and Finishes Work Together

A magnetic rigid box is built from two very different material layers.

The hidden greyboard core creates the structure, while the paper wrap creates the surface customers actually see and touch.

Choosing either material independently can create problems. A board that is unnecessarily thick can reduce internal space and change hinge movement. A heavy or textured paper may affect corner wrapping, magnet performance or fine artwork. Some finishes also behave differently depending on the paper underneath them.

For custom magnetic closure rigid boxes, the best result comes from treating greyboard, paper wrap, hinge, magnets and finishing as one construction.

What Is Greyboard in a Magnetic Rigid Box?

Greyboard is a dense paperboard used to create the walls, base, lid and other structural panels of many rigid boxes.

Unlike folding carton stock, it is generally too thick to print and fold into the finished package in the same way as ordinary paperboard.

Instead, individual rigid-board panels are cut and then covered with a separate paper surface.

That creates two distinct jobs:

Understanding that layered construction makes material selection much easier.

Greyboard Thickness Should Follow the Box, Not a Prestige Number

Thicker board is not automatically better.

The appropriate thickness depends on the complete box dimensions, packed weight, lid size, wall height and magnetic closure design.

A compact jewelry box does not need the same board construction as a large presentation box carrying bottles or an electronics kit.

If the board is unnecessarily thick, it can:

• Add weight

• Reduce usable interior dimensions

• Increase the visual bulk of small boxes

• Affect hinge flexibility

• Increase corner thickness after wrapping

• Require changes to magnet positioning

If the board is too light for the structure, the opposite problems can appear, including wall flex, lid movement and poor alignment.

The goal is appropriate rigidity, not maximum thickness.

Box Size Changes How the Same Board Behaves

A board specification that works well for a small box may behave differently when used across a much larger lid.

Long and wide panels have greater opportunities to flex.

That means board selection should account for the span of each panel, not simply the weight of the product.

For example:

A loaded structural sample provides a better answer than selecting board thickness from box dimensions alone.

The Lid Often Needs More Attention Than the Base

Magnetic rigid boxes depend on lid alignment.

A wide hinged lid can flex even when the base remains stable.

That movement matters because the magnets positioned in the flap must meet their corresponding closure points accurately.

If the lid bows, twists or returns inconsistently, the magnetic closure can feel uneven.

This is why lid size, board rigidity, hinge spacing and magnet placement should be evaluated together.

For wider boxes, more than one magnetic closure point may be appropriate to distribute the closing force across the front edge.

Paper Wrap Is More Than Decoration

The wrap controls the visible identity of the box, but it also has to bend around corners, bridge hinge areas and remain adhered to the structural board.

Different papers behave differently during this process.

A smooth coated sheet used for full-color graphics does not behave exactly like a thick linen-textured stock. Natural kraft, metallic paper and soft-touch laminated sheets also have different surface and folding characteristics.

The wrap should therefore be selected according to both:

visual appearance + converting performance

Compare Paper Wraps by What the Design Needs

Printed Art Paper

Printed art paper works well when the packaging needs detailed graphics, gradients, illustrations or photographic artwork.

Its relatively smooth surface supports accurate printing and can receive matte, gloss or selected protective laminations.

It is useful when color reproduction is more important than visible natural paper texture.

Uncoated Paper

Uncoated stock creates a softer, more natural surface.

It can suit restrained branding, typography-led packaging and premium products where tactile paper quality is part of the design.

Ink may absorb differently than on coated paper, so printed colors should be reviewed on the actual selected stock.

Natural Kraft Wrap

Kraft gives the box a warm brown paper surface with visible natural character.

It can suit wellness, handmade, apparel, gifting and material-focused brands.

Because the base paper is brown, printed colors do not behave exactly as they do on white stock. Light colors in particular should be tested.

Dark Colored Paper

Black, navy, burgundy and other dark papers can create strong presentation without requiring heavy printed coverage.

They can work especially well with metallic foil, white printing or restrained debossing.

Dark surfaces should be checked for scuffing and handling marks before production.

Textured Paper

Linen, leather-effect and other embossed paper surfaces add visual and tactile depth.

Texture can reduce the need for complex printed artwork, but very fine graphics or small typography may reproduce differently across an uneven surface.

The texture should support the design rather than fight it.

Pearlescent and Metallic Paper

Reflective papers create their effect through the material itself.

They can suit fragrances, beauty products, special editions and gift packaging.

Because lighting changes the way these surfaces appear, evaluate them in physical samples rather than relying only on digital artwork.

Paper Weight Affects Corner and Edge Wrapping

A rigid box requires the wrap paper to turn around edges and corners cleanly.

Very thin paper may not provide the desired opacity or surface feel.

Very heavy paper can become harder to fold neatly around tight corners and may create more buildup where several layers overlap.

The appropriate paper weight depends on:

• Surface type

• Box dimensions

• Corner geometry

• Printing method

• Lamination

• Board thickness

• Wrapping method

The best material is therefore not simply the thickest premium paper available.

It is the paper that produces the desired surface while still wrapping accurately around the structure.

Grain Direction Matters Around Hinges and Folds

Paper has a grain direction created during manufacturing.

That direction affects the way the sheet bends.

When paper repeatedly moves across the hinge of a magnetic box, poor grain planning can increase resistance, surface stress or visible cracking depending on the material and finish.

This becomes particularly important with:

• Heavy paper

• Coated sheets

• Laminated wraps

• Textured stocks

• Dark solid colors

The final production layout should consider both print efficiency and how the paper needs to move on the completed box.

The Hinge Gap Must Match the Material Build-Up

A magnetic rigid box does not bend directly through the middle of a solid greyboard panel.

Separate rigid panels are normally arranged with a controlled gap that allows the wrapped surface to act as the hinge.

That gap must provide enough space for smooth movement.

Too little clearance can make the lid stiff or create unnecessary stress on the wrap.

Too much clearance can make the hinge feel loose or create an oversized visible channel.

The correct hinge depends on the combination of:

board thickness + wrap thickness + lining + lid geometry

This is one of the reasons changing the exterior paper late in development can affect more than appearance.

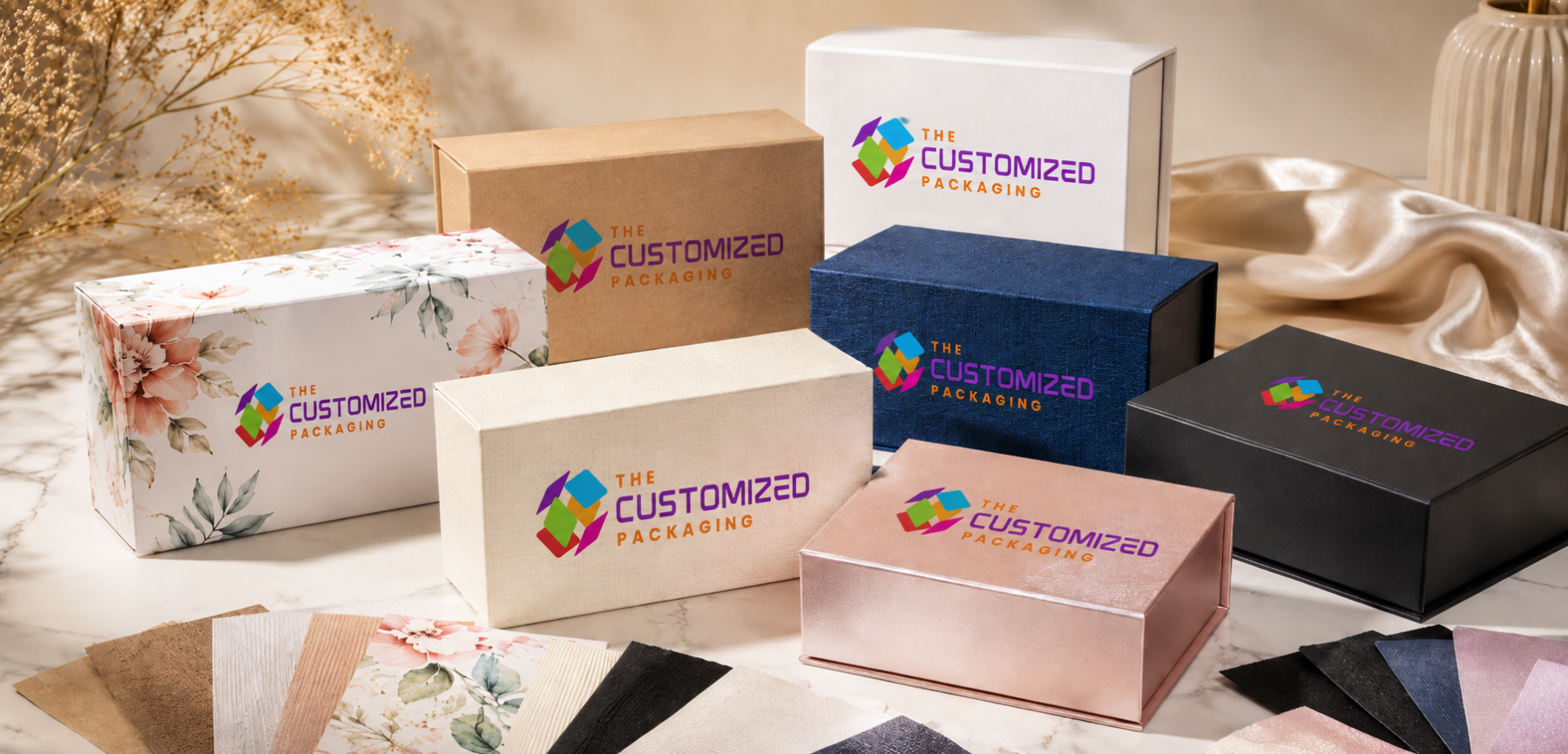

Greyboard and Paper Wrap Affect Magnetic Performance

The magnets in a magnetic rigid box are normally hidden beneath the wrap and structural layers.

Magnetic force has to work through those materials.

Adding thicker paper, more board between the magnetic components or additional padded layers can change the closing feel.

The correct closure should therefore be tested using the final proposed material build-up.

The goal is a lid that:

• Pulls into alignment naturally

• Remains securely closed

• Opens with comfortable force

• Does not require excessive magnet strength

• Shows no visible magnet bumps

Increasing magnet strength should not be the first solution to poor structural alignment.

The board, flap position and material layers should also be checked.

Magnet Recesses Should Remain Invisible

A concealed magnet should feel like part of the structure rather than a visible component beneath the paper.

The magnet recess needs enough depth to keep the finished surface smooth.

However, cutting too deeply into the greyboard can weaken the local area.

This requires a balance between:

• Magnet thickness

• Board thickness

• Recess depth

• Wrap thickness

• Magnet position

Minimalist designs make these details particularly noticeable because large plain surfaces reveal bumps and irregularities easily.

Corner Quality Depends on More Than Skilled Wrapping

Corners are one of the easiest places to judge the construction quality of a rigid box.

Poorly planned material combinations can create:

• Thick overlapping areas

• Raised edges

• Exposed greyboard

• Uneven seams

• Wrinkled paper

• Rounded-looking corners where sharp geometry was intended

Clean corners depend on accurate board cutting, wrap thickness, adhesive application and consistent turning of the paper around the edge.

Specialty papers should be sampled on the actual box structure because a beautiful flat sheet may behave differently at a wrapped corner.

Adhesive Compatibility Matters

The paper wrap has to remain bonded to the rigid board throughout normal handling.

Different coated, metallic, laminated and textured surfaces can require different converting considerations.

The adhesive should create consistent attachment without causing visible bubbling, lifting or surface distortion.

Particular attention should be paid to:

• Corners

• Hinge areas

• Wrapped edges

• Large flat lid surfaces

• Interior turn-ins

A smooth flat panel can still reveal adhesive problems if the paper does not sit evenly against the board.

Choose Finishes After Choosing the Wrap

Finishing should be planned around the actual paper.

A finish that performs beautifully on smooth coated stock may produce a different effect on deeply textured material.

Foil Stamping

Foil can create precise metallic or colored details on logos, text and selected graphics.

Smooth papers generally support finer detail, while textured stocks can create a more tactile but less uniform result.

The foil color should also be evaluated against the actual paper rather than on a white digital background.

Embossing and Debossing

Embossing raises the design, while debossing presses it into the surface.

These techniques can create branding through physical depth rather than additional color.

The selected paper, underlying structure and artwork detail influence how sharp the impression appears.

Spot UV

Spot UV creates reflective contrast over selected areas of a printed surface.

It is particularly effective when used against a matte background.

It generally makes more sense on suitable smooth printed surfaces than on papers chosen primarily for their natural texture.

Soft-Touch Lamination

Soft-touch lamination can give a printed paper wrap a smooth matte tactile finish.

It can work well for beauty, fragrance, fashion and technology packaging.

Dark soft-touch surfaces should be tested for fingerprints, scuffing and handling marks.

Do Not Stack Premium Effects Without a Reason

A rigid box can support multiple finishes, but every additional process changes the surface.

A package does not become more luxurious simply because it includes foil, embossing, spot UV and soft-touch lamination at the same time.

A better sequence is:

1. Choose the correct structural board.

2. Choose the wrap that creates the intended base appearance.

3. Establish the artwork hierarchy.

4. Add one or two finishes where they improve that hierarchy.

Good materials and construction should remain visible even when decoration is restrained.

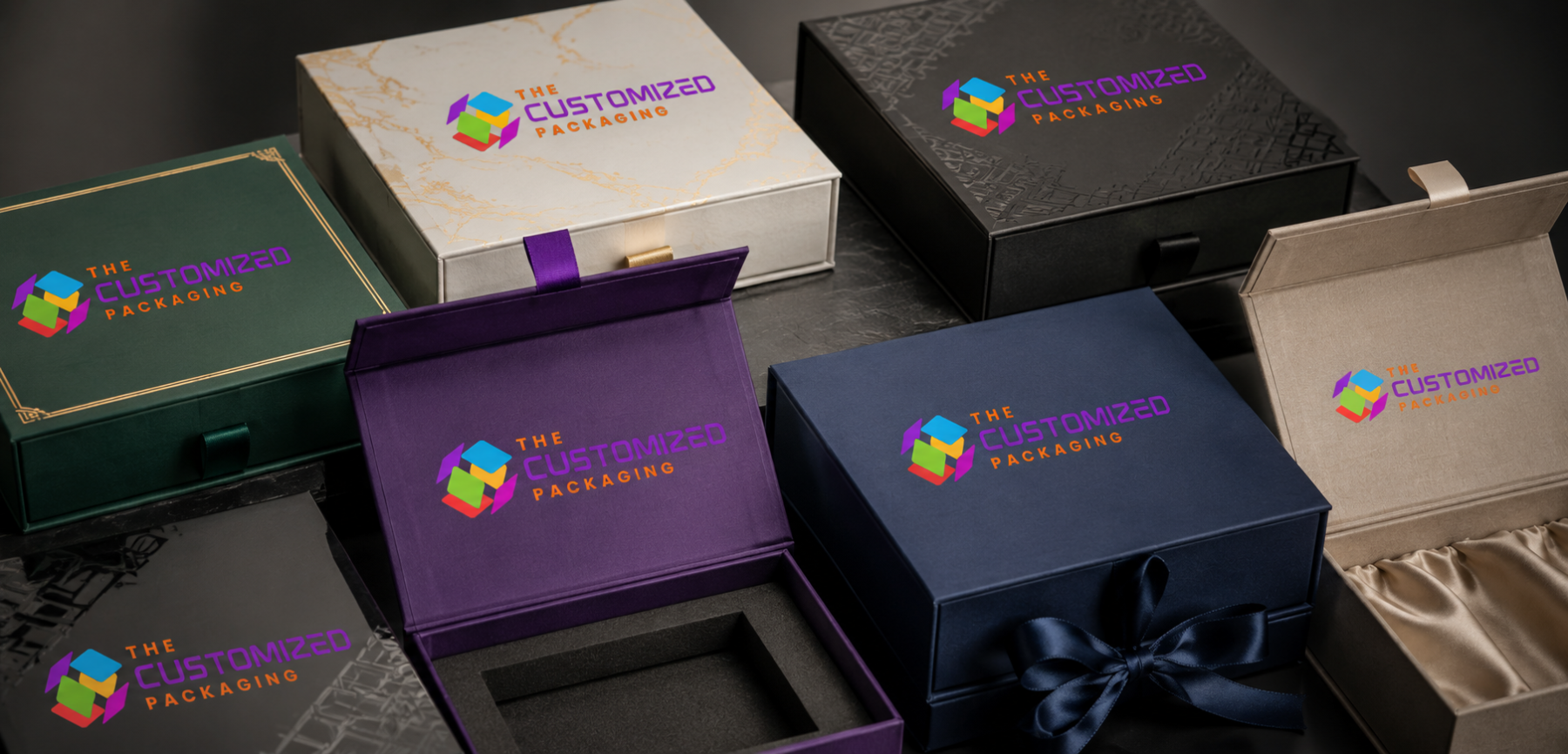

Match the Wrap to the Product Positioning

Different products can use the same magnetic rigid structure while creating completely different impressions through the wrap.

These are starting points rather than rules.

The final surface should feel appropriate for the product and brand rather than simply following packaging trends.

Interior Lining Should Be Planned With the Exterior

The outside wrap is not the only visible paper.

When the box opens, the interior lid and base can introduce another surface.

The lining can:

• Match the exterior

• Create contrast

• Introduce a secondary brand color

• Carry interior printing

• Coordinate with the product insert

Interior papers also contribute to the total material thickness around hinges and edges.

They should therefore be considered as part of the construction rather than added after the exterior has already been finalized.

Use Material Samples Before Final Artwork

Material decisions made from photographs can be misleading.

Texture, reflectivity, stiffness and color often look different in person.

Before final production, compare representative samples of the proposed:

• Greyboard construction

• Paper wrap

• Printed color

• Lamination

• Foil

• Embossing or debossing

• Interior lining

For projects where the paper surface is a major part of the design, the physical material should be approved before artwork is locked.

Prototype the Final Material Combination

A structural prototype made from substitute materials can confirm dimensions, but it cannot fully confirm surface and closure performance.

For a final material review, test the proposed greyboard and wrap together.

Greyboard and Paper-Wrap Approval Checklist

Confirm that:

• The selected board keeps the box square

• The lid remains stable across its full width

• The hinge opens smoothly

• Paper does not crack or resist excessively at the hinge

• Magnets engage through the final material layers

• The closing force feels comfortable

• Magnets do not create visible bumps

• Corners remain clean and consistent

• Wrapped edges do not lift

• Dark surfaces tolerate normal handling

• Printed colors suit the selected paper

• Foil or other finishes reproduce clearly

• Interior lining fits cleanly

• The loaded product does not distort the structure

• The material combination still looks appropriate after repeated opening

The completed sample should be judged as one package, not as separate board and paper specifications.

Frequently Asked Questions About Greyboard and Paper-Wrapped Magnetic Boxes

What is greyboard used for in a magnetic rigid box?

Greyboard forms the structural core of the box. It provides rigidity to the base, walls, lid and closing flap while the visible paper wrap covers the structural board.

Is thicker greyboard always better?

No. Board thickness should match the box dimensions, product weight, lid size and required rigidity. Excessive thickness can add weight, reduce internal space and affect hinge or magnet design.

What paper is used to wrap magnetic rigid boxes?

Options can include printed art paper, uncoated paper, natural kraft, colored paper, textured stock, pearlescent paper and metallic or other specialty surfaces.

Does paper thickness affect the magnetic closure?

It can. The total material between concealed magnets affects how the closure feels, which is why magnetic performance should be tested with the final board and wrap combination.

Can textured paper be foil stamped?

Many textured papers can accept foil, but the final result depends on the texture, foil artwork and stamping conditions. A physical sample is useful when fine detail is important.

Why does grain direction matter?

Paper grain affects how the wrap bends, particularly around hinge areas. Correct planning can improve movement and reduce unnecessary surface stress.

What causes poor corners on rigid boxes?

Board accuracy, paper thickness, wrap geometry, adhesive and production consistency can all affect corner quality. The material combination should be tested on the actual box structure.

Should greyboard and wrap materials be sampled together?

Yes. The completed material system is what determines hinge movement, magnetic performance, corner quality, print appearance and the overall feel of the box.

Build the Surface and Structure Together

The quality of custom magnetic closure rigid boxes depends on the relationship between materials that customers can see and materials they cannot.

Greyboard gives the package its shape. Paper wrap creates the visible color and texture. The hinge connects the moving panels. Concealed magnets close the structure through those material layers, while finishes add selected visual or tactile details to the outer surface.

Changing one element can affect the others.

That is why board thickness should be selected with the box dimensions in mind, paper should be chosen for both appearance and wrapping performance, and magnetic strength should be tested through the actual finished construction.

When these materials are developed together, the result is a rigid magnetic box with clean corners, controlled lid movement, reliable closure and a surface that looks intentional from every angle.

The Customized Packaging develops paper-wrapped magnetic rigid boxes around your dimensions, product weight, preferred surface, branding and finishing requirements. Share your product and artwork specifications to develop the greyboard, wrap and closure as one coordinated package.
