How to Pair Child-Resistant Mylar Bags With Custom Retail Boxes

A child-resistant pouch and an outer retail box perform different jobs.

The flexible pouch directly contains the product and may provide the required closure, seals and selected barrier properties. The secondary carton can add structure, printable space, organization and a more consistent retail shape.

The mistake is designing the box around an empty flat pouch.

A child resistant Mylar bag box should be developed around the pouch after it has been filled and closed, because the product changes its width, depth, bottom gusset, zipper position and overall shape.

A practical sequence is:

Filled pouch → Maximum dimensions → Closure clearance → Retail orientation → Carton structure → Physical sample

Does Every Child-Resistant Mylar Bag Need a Box?

No.

A properly designed flexible pouch may already provide the required product containment, branding and retail presentation.

An outer carton becomes useful when the product needs something the pouch alone does not provide, such as:

• Additional structural support
• More printable space
• A consistent rectangular shelf shape
• Protection around the zipper or seal
• Organization of several pouches
• A premium presentation
• A retail display format
• Separation of accessories or components

Do not add a carton automatically.

If it does not improve protection, organization, information space or presentation, it may only increase material, packing time and cost.

Measure the Filled Pouch, Not the Flat Bag

Flexible packaging changes shape after filling.

A stand-up pouch that looks almost flat before use may become considerably deeper once the bottom gusset expands.

Measure the production-ready pouch at its maximum:

• Width
• Height
• Filled depth
• Bottom gusset
• Side gusset where applicable
• Zipper thickness
• Heat-seal area
• Tear-away section
• Hang hole where applicable

Also record the filled weight.

If the product settles after packing, check the pouch again after normal storage.

The carton should fit the shape customers will actually receive.

Account for Gusset Expansion

The gusset is one of the most common reasons a Mylar pouch box is sized incorrectly.

Stand-Up Pouches

A bottom gusset expands outward as the pouch fills.

Its final depth depends on:

• Product volume
• Product shape
• Fill weight
• Gusset construction
• Headspace

The carton depth therefore needs to match the filled pouch, not the nominal flat-bag specification.

Side-Gusseted Pouches

Side gussets may expand unevenly depending on how the contents settle.

Measure the widest realistic filled condition.

Flat Pouches

Flat pouches generally require less carton depth, but seals, zippers and bulky contents can still create thickness.

Do not assume “flat pouch” means the product can use an extremely shallow carton.

Protect the Child-Resistant Closure

The top of the pouch often contains the most mechanically important features.

These may include:

• Specialized zipper
• Pressing area
• Pinch point
• Sliding mechanism
• Heat seal
• Tear notch
• Tear-away strip
• Opening instructions

The carton should not place unnecessary pressure on these areas.

Leave enough internal clearance so the pouch can be inserted and removed without:

• Folding the zipper
• Crushing the closure
• Bending the heat-sealed section
• Hiding opening instructions
• Creating stress around the top seam

If the pouch needs a specific coordinated action to open, the box should not interfere with the customer's ability to access and understand that mechanism after removal.

Child Resistance Comes From the Appropriate Package Component

A secondary paperboard carton around a child-resistant pouch does not automatically become child-resistant itself.

This distinction should remain clear in the packaging specification and artwork.

For example:

Inner pouch → specialized child-resistant closure

Outer carton → structural protection, branding and information space

If the outer carton is also intended to perform a child-resistant function, that is a separate packaging-performance question and should be evaluated accordingly.

Do not market an ordinary folding carton as child-resistant merely because it contains a child-resistant pouch.

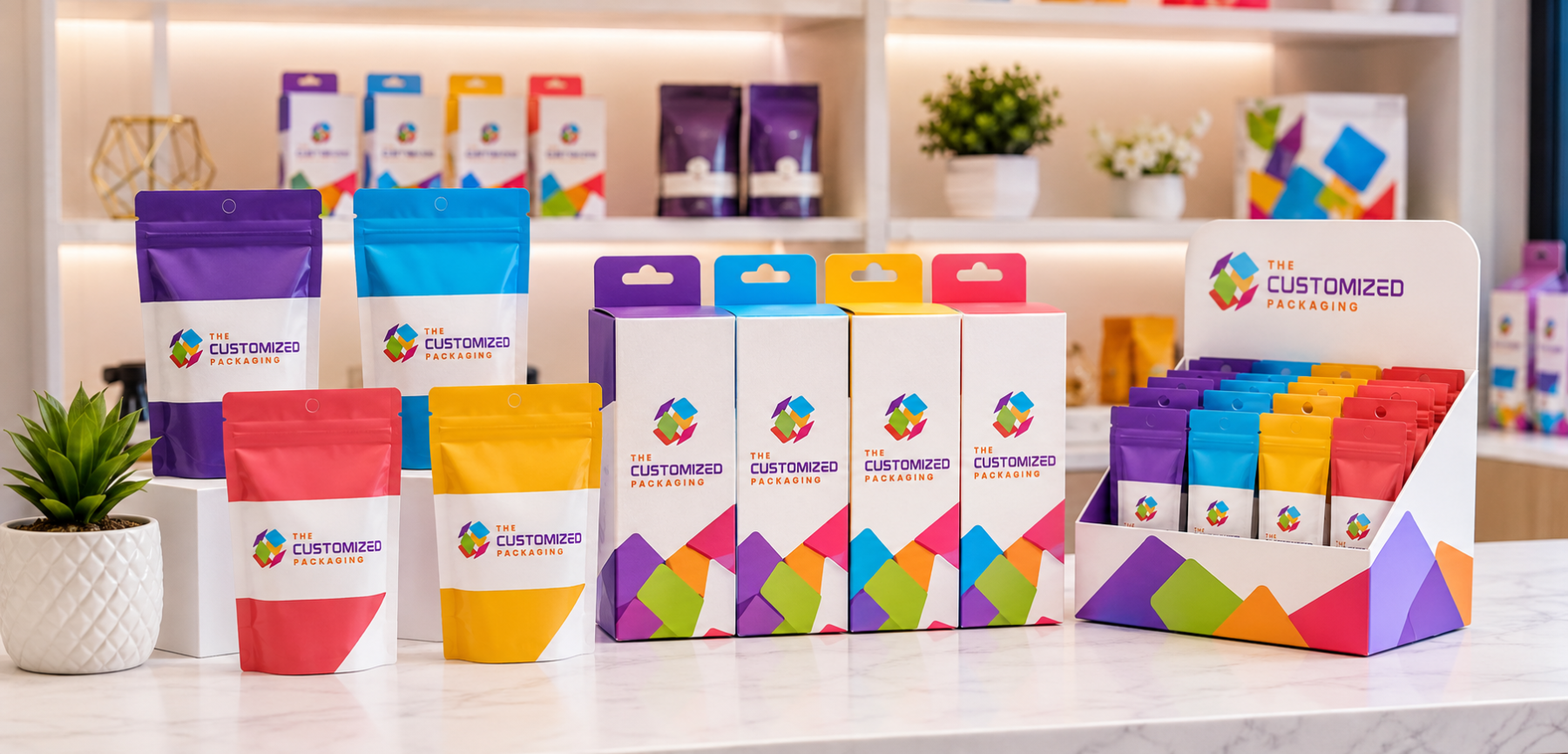

Choose the Retail Orientation Before Designing the Carton

Decide how the package should sit in the store.

Common orientations include:

• Upright on a shelf
• Hanging from a retail hook
• Standing inside a counter display
• Lying flat
• Sliding from a sleeve
• Sitting in a gift or presentation box

The orientation affects which pouch dimensions become most important.

For example:

Shelf upright → stable base + front-panel visibility

Peg hook → hanging strength + package balance

Flat retail pack → controlled thickness

Drawer presentation → pouch clearance during sliding

A box that works well standing upright may be inconvenient when displayed horizontally.

Stand-Up Pouch Boxes

Stand-up pouch boxes are useful when a filled gusseted pouch needs a more predictable retail shape.

A folding carton around the pouch can create:

• Flat printable panels
• Defined shelf dimensions
• Better alignment across SKUs
• Additional information space
• Protection around the flexible pouch

The carton should be deep enough for the fully expanded gusset without squeezing it.

At the same time, excessive depth can allow the pouch to lean or rotate.

The strongest fit usually provides sufficient packing clearance while limiting unnecessary movement.

Flat Pouch Boxes

A flat pouch box can use a shallower carton, sleeve or tray structure.

This may suit:

• Samples
• Compact products
• Single units
• Slim accessories
• Small quantities

The main sizing concern becomes the maximum pouch thickness rather than a large bottom gusset.

A sleeve can work well when the pouch needs only light structure and additional branding.

A tuck carton may provide better closure and panel space when more information needs to appear on the package.

Choose the Box Structure Around the Pouch

Several secondary structures can work with flexible packaging.

The outer package should solve a real requirement.

A premium rigid box is unnecessary when a lightweight folding carton provides everything the product needs.

Keep the Pouch Upright Inside the Box

A flexible pouch can shift even when the box dimensions appear correct.

This is particularly noticeable when the front of the pouch needs to align with a window or opening.

Possible controls include:

• Accurate internal dimensions
• Folded paperboard tabs
• Side supports
• Bottom platforms
• Simple dividers
• Fitted trays

The support should not compress the zipper or heat seal.

For a single pouch, accurate sizing may be enough.

For multiple pouches or premium sets, additional internal organization can become more useful.

Leave Enough Room to Remove the Pouch

A carton can fit perfectly and still be frustrating to use.

Customers need enough access to remove the flexible pouch without digging into the box or pulling aggressively on the top seal.

Useful features can include:

• Finger notches
• Thumb cuts
• Side openings
• Pull tabs
• Drawer trays
• Controlled top clearance

Test the package with the finished filled pouch.

If the user needs to grip the zipper or tear-away section simply to pull the pouch from the carton, the box may be too tight or the removal method may need improvement.

Coordinate Pouch and Carton Artwork

The pouch and secondary box can look related without repeating the same design twice.

One approach is:

Carton → simplified retail-facing branding

Pouch → detailed product information and operating instructions

Another is:

Carton → detailed product identity

Pouch → minimal brand system for continued use after the carton is discarded

Whichever approach you choose, keep the visual system consistent through:

• Logo placement
• Typography
• Product naming
• Variant colors
• Graphic style
• Instructions

The box should not hide information customers still need after removing the pouch.

Important opening and reclosing instructions should remain on the pouch when they relate to the pouch closure.

Plan Information Across Both Packaging Layers

Two packaging surfaces create more room, but they can also create unnecessary duplication.

Decide which information belongs on each component.

Outer Carton

Useful for:

• Brand identity
• Product name
• Main variant
• Retail-facing information
• Barcode
• Additional instructions
• QR code
• Supporting product details

Inner Pouch

Useful for information that remains important after the box is discarded, including:

• Product identity
• Opening instructions
• Recloseness guidance
• Storage guidance
• Required warnings
• Lot or batch information where applicable

The responsible product business should determine the exact labeling and warning requirements that apply to its product and market.

Plan a Retail Window Carefully

Some Mylar bag retail boxes use a die-cut opening to show part of the pouch.

This can be useful when:

• Pouch color distinguishes variants
• A printed pouch design is part of the presentation
• Customers benefit from seeing the inner package
• The box and pouch are intentionally coordinated

The pouch needs to remain aligned behind the opening.

If it rotates or slumps, the window can make poor positioning more visible.

Also remember that an opening in the outer box does not change the barrier characteristics of the inner pouch itself, but it may change the physical protection or presentation provided by the carton.

Do Not Confuse the Carton With the Barrier Layer

The flexible pouch typically provides the direct barrier around the product.

The outer paperboard or rigid carton performs different functions.

For example:

Pouch film → selected moisture, oxygen or light barrier

Closure → controlled access and reclosure where applicable

Heat seal → initial package integrity where used

Carton → structure, protection, branding and information space

Keeping these responsibilities separate prevents exaggerated claims.

A printed paperboard carton should not be described as making the pouch airtight, odor-proof or moisture-proof unless the complete finished packaging has appropriate supporting performance data.

Use Inserts for Multi-Pouch Sets

A single carton may contain several individual pouches.

This can occur with:

• Variety packs
• Sample sets
• Subscription assortments
• Gift collections
• Product bundles

Without internal control, the pouches can overlap, fold or hide one another.

A divided paperboard tray or other suitable support can give each pouch a defined position.

When designing the insert, check:

• Filled pouch thickness
• Zipper location
• Removal space
• Product identification
• Carton depth

Avoid placing pressure directly against the closure or heat-sealed top.

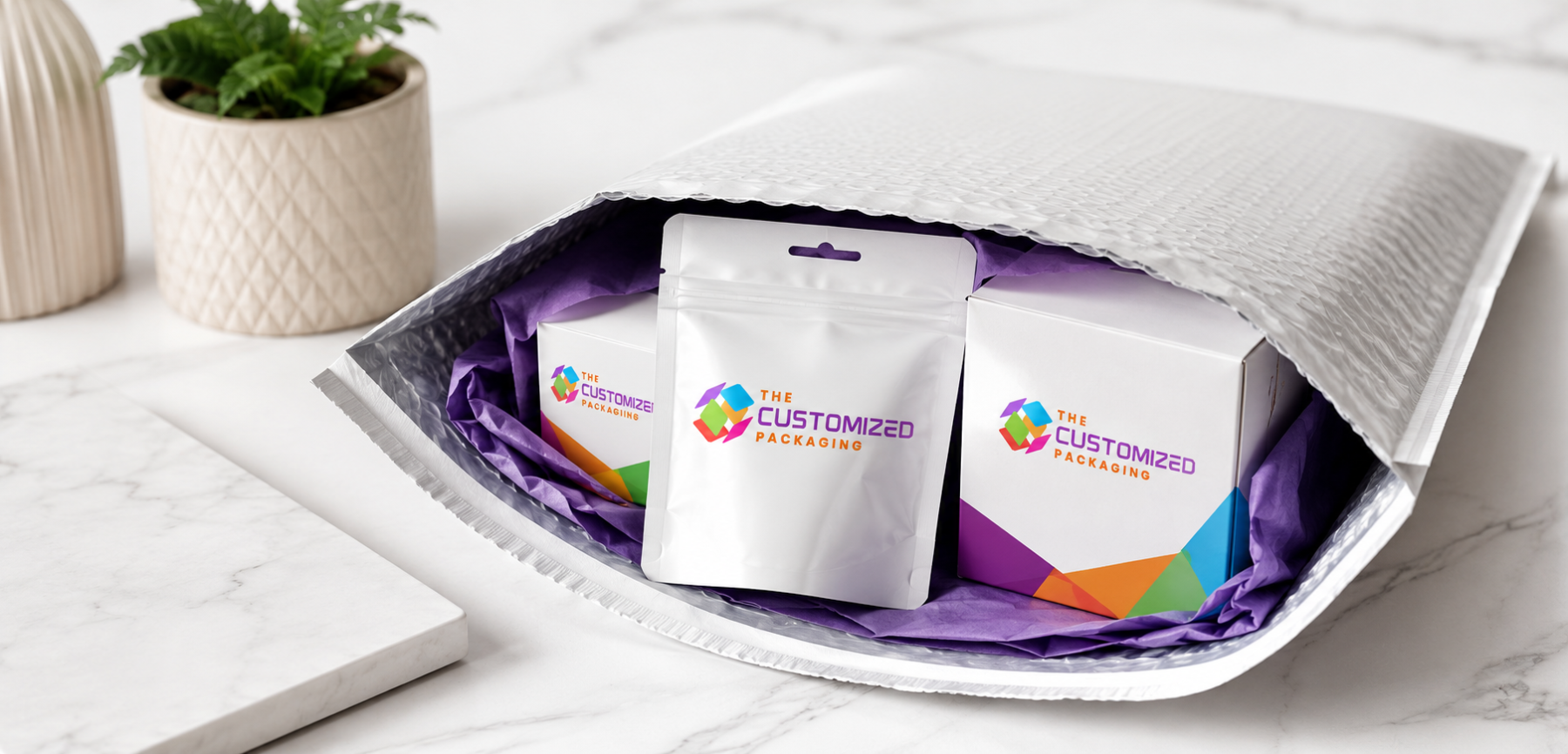

Separate Retail Packaging From Shipping Packaging

The pouch and its printed carton are not automatically a complete ecommerce shipping system.

A product sold online may require another outer layer:

Product → Child-resistant pouch → Optional retail carton → Shipping package

A suitable mailer or shipping carton can protect the customer-facing packaging during fulfillment and carrier handling.

For discreet delivery, the external shipper can remain plain while the retail packaging inside carries the required branding and product information.

Test the complete configuration with the filled product before finalizing recurring ecommerce orders.

Test the Pouch and Box Together

A blank box should never be approved without the finished pouch when the fit is important.

Check:

• Filled pouch dimensions
• Gusset expansion
• Zipper clearance
• Heat-seal clearance
• Insertion
• Removal
• Pouch orientation
• Carton closure
• Product movement
• Window alignment where applicable
• Barcode readability
• QR-code readability

Then close the package and handle it normally.

Open it again.

The pouch should remain in acceptable condition without crushed closures, excessive folding or difficult removal.

Build One Carton Around Several Variants Carefully

Brands often use the same pouch dimensions for several product varieties.

That can allow one custom Mylar bag box structure to support multiple SKUs.

Keep the same:

• Pouch dimensions
• Gusset size
• Zipper position
• Fill range
• Carton dimensions
• Internal support

Then change the printed artwork by variant.

If one product uses significantly more or less fill, test it separately.

Different fill volumes can change the final pouch depth even when the empty bags are identical.

What to Provide When Requesting Mylar Pouch Boxes

For accurate box development, provide:

• Filled pouch width
• Filled pouch height
• Maximum filled depth
• Gusset dimensions
• Filled weight
• Zipper position
• Heat-sealed top dimensions
• Product photos
• Preferred retail orientation
• Number of pouches per box
• Window requirement
• Insert requirement
• Printing needs
• Order quantity
• Delivery destination

If possible, provide filled production pouch samples.

They give a much better representation of the required carton than empty bags.

Custom Boxes for Child-Resistant Mylar Bags From The Customized Packaging

The Customized Packaging develops child resistant Mylar bag boxes around the actual filled pouch, retail orientation, printing requirements and quantity.

Secondary packaging can include folding cartons, sleeves, sleeve-and-tray boxes, drawer boxes, rigid presentation boxes, multi-pouch cartons and retail displays.

Custom structures can be developed around stand-up pouches, flat pouches and other flexible formats while providing appropriate clearance around gussets, zippers, seals and opening areas.

The strongest starting point is the finished pouch.

Once its filled dimensions and packaging function are known, the carton can be developed around the product rather than forcing a flexible bag into a generic box size.

Brands remain responsible for confirming the child-resistant, labeling, testing and other requirements that apply to their finished product and market.

Frequently Asked Questions

Does a child-resistant Mylar pouch need an outer box?

Not always. A secondary carton is useful when additional structural protection, retail presentation, information space or product organization is needed.

How do I measure a Mylar pouch for a custom box?

Measure the pouch after it has been filled and closed. Record its maximum width, height and depth, including gusset expansion, zipper thickness and heat-sealed areas.

Should the box fit the Mylar bag tightly?

The carton should control unnecessary movement while leaving enough clearance for the filled pouch, zipper, seals and easy removal. The correct fit should be confirmed with a physical sample.

Can a folding carton around a child-resistant pouch also be called child-resistant?

Not automatically. The child-resistant claim should relate to the component and finished package configuration supported by the applicable performance requirements or documentation.

What box works best for a stand-up pouch?

A folding carton is a practical option for many individual stand-up pouches. Drawer, rigid and display structures can be useful when the product requires a different presentation or several pouches need to be organized together.

Can one box work for several Mylar pouch variants?

Yes, when the filled dimensions and closure positions remain compatible. Different fill volumes should be tested because they can change pouch depth and overall fit.

Can Mylar pouch boxes have windows?

Yes. A die-cut opening can reveal the inner pouch, but the pouch should remain properly positioned behind the window and the carton should retain sufficient structural support.

Should I test a pouch box before bulk production?

Yes. A physical sample confirms filled-pouch fit, gusset expansion, zipper clearance, product orientation, carton closure and removal before a larger production run.
